Product Details:
Payment & Shipping Terms:
|
| Machine Size:: | 5.6*1.2*1.5m | Machine Color: | Yellow And Orange |
|---|---|---|---|
| Forming Steps: | 12 Steps | Driving Method: | 1 " Chain |
| Name: | Roofing Decorate | Press System: | Hdyraulic Motor |
| High Light: | stud and track roll forming machine,keel making machine |
||
0.5-1 mm double profiles produce light steel keel roll forming machine with manual decoiler
1. 0.5-1 mm double profiles produce light steel keel roll forming machine with manual decoiler
1. We have our own research and development team with strong ability to solve all kinds of problems;
2. We have stable raw material suppliers to ensure the best quality and on time supplying with low cost;
3. We have more than 20 technicians that can go abroad for the after-sale service;
4. We have Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. advanced production equipments to ensure the quality of each part and the best appearance of our machines;
5. We have more than 100 kinds and models products for your choice, you can find the most kind of roll forming machines from us;
2. 0.5-1 mm double profiles produce light steel keel roll forming machine with manual decoiler parameters
| Raw material | |
| Processing material |
Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized |
| Processing thickness (mm) | 0.5-1.0 mm or as your customized |
| Material of rollers |
High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm |
| Material of shafts | 45# steel |
| Diameter of shafts | 40mm or as your customized |
| Forming speed | 8-12 m/min or as your customized |
| Under frame | High strength steel pipe weld |
| Sidewall | 16mm |
| Connect bar | 20mm, zinc plated |
| Forming steps | 10-18 or as your customized |
| Control system | Delta PLC and Inverter |
| Suitable power | 380V, 50 Hz, 3 phase or according to your need |
| Drive mode | Chain and sprocket, chain size 1 inch |
| Main motor | 3-5.5kw |
| Hydraulic pump station | 3-5.5kw |
| Cutting model | Hydraulic profile cutting |
| Weight of the machine | 3.5 ton -6 ton |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. Our advantage
Pre-sale Service
1. Send you invitation letter, If you wanna visit our factory and check the machines.
2. Good Quality Manufacturer competitive price Quick Response Reliable Service for you.
Selling Service
1. Short delivery time after deposit 30-40 days.
2. Email you the production schedule and make prompt delivery for you.
3. We will count the cheapest shipping cost and fastest forwarder for you and send documents promptly.
4. Always be here for your service 12 hours per day.
After-sale Service
1. We welcome all feedback about our products and prices and services from our customers.
2. Any questions, please contact with us freely by E-mail or Telephone.
5. FAQ
1.How to choose the machine,any information i need to offer?
You need to provide the product drawings.
2.How about your machine quality?
Durmapress is a mature Brand in China,through our many years research in technology,our design including structure and detailed sercurity and precision has enhanced grearly and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry,there are Durmapress machines.And where there are our machines,there are good reputation and terminal user satisfaction.
3.Where is your factory?
Durmapress located in Bowang district high and new technology industrial park,maanshan city Anhui province which is the leading area in China and also in the worldwide as the center of the metal place solution machines.
4.Do you accpect L/C payment terms?
Yes,we accpect 100% L/C at sight from almost all countries.

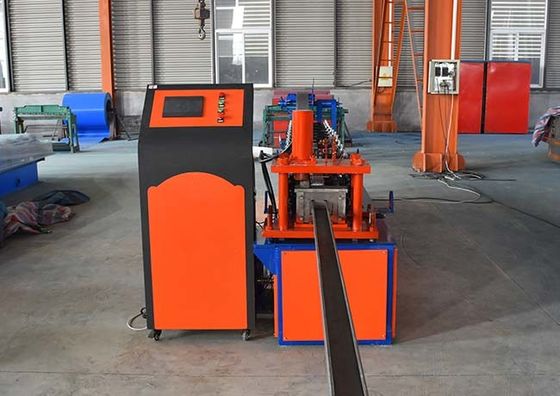

6. Roll forming machine pictures:
