| Warranty: | 2 Yesrs | Raw Material: | PI/PPGI |
|---|---|---|---|
| Voltage: | 380V/50HZ/3PH | Condition: | New |
| Product Name: | Metal Sheet Roll Forming Machine | Roller Material: | 45# Forged Steel |
| High Light: | metal roof roll forming machine,metal roofing sheet making machine |
||

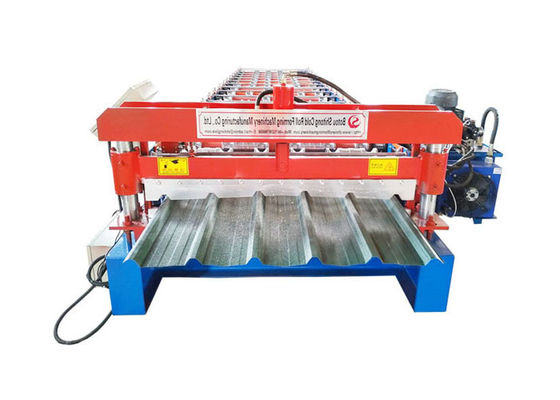

High quality single layer 6 ribs roof Sheet Metal Roll Forming Machines
| Building material steel roofing sheet roll forming machine machinery | |
| Suitable raw material | PPGI/PPGL/GI/GL Steel Coils |
| Thickness of coil sheet | 0.3-0.8mm |
| Feeding Coil width | 1250mm |
| Effective width | 1060mm |
| Under frame | 350H-beam |
| Diameter of Soild shaft | 70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway |
| Roller |
High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment, hard chrome coated 0.05-0.07mm |
| Thickness of middle plate | 16mm |
| Forming stations | 16 |
| Drive type | By chain(1.0 inch) link bearing model 6210 |
| Power of main motor | 5.5kw with Cycloidal reducer, Lichao, Shanghai |
| Power of pump station | 4kw, Lichao, Shanghai |
| Forming speed | About 15-20m/min |
| Hydraulic cutting | Controlled by PLC |
| PLC | DELTA, TAIWAN / Mitsubishi, Japan |
| Material of cutting blade |
Cr12Mov, quenching 58-62℃ |
FAQ
1.Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2.Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3.Q: what is the MOQ?
A: One set
4.Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5.Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6.Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7.Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.
9.Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
