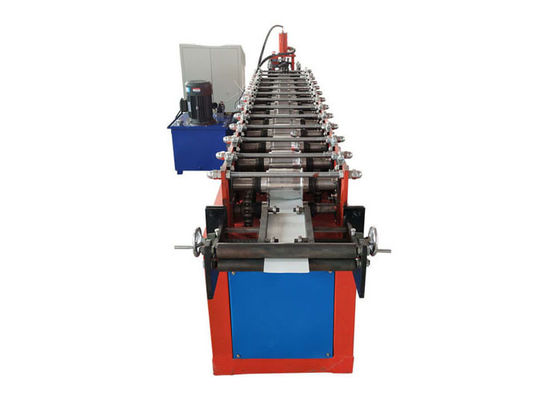

Fully Automatic Roller Shutter Door Roll Forming Machine With Holes Punching Device

Fully Automatic Roller Shutter Door Roll Forming Machine With Holes Punching Device
Fully Automatic Roller Shutter Door Roll Forming Machine With Holes Punching Device Fully Automatic Roller Shutter Door Roll Forming Machine With Holes Punching Device Fully Automatic Roller Shutter Door Roll Forming Machine With Holes Punching Device

Large Image :  Fully Automatic Roller Shutter Door Roll Forming Machine With Holes Punching Device

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: shutter door
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us for more information
Packaging Details: 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film
Delivery Time: 55 working days
Payment Terms: L/C,T/T
Supply Ability: 21 sets/month
Detailed Product Description
Name: Roller Shutter Door Roll Forming Machine Control System: PLC Control System
Voltage: 380V 50Hz 3phases Raw Materia: GI, PPGI, Color Aluminium
Driving Method: A/C Motor Dimension: 4500*900*1300mm
Cutting Blade Material: Cr 12 High Grade Steel
High Light:

automatic rolling shutter machine

,

roller shutter door making machine

Fully automatic roller shutter door roll forming machine with holes punching device



1. Instruction of the roll forming machine production line



This machine is popular in Middle East and was exported to many countries.

Our roll forming machine can produce different kinds of steel panel tiles for roof and wall. The tiles is mainly used in temporary building site, steel constructure workshop,and other public building with fast building speed. It has advantage of pretty appearance, durable using and so on.



Machine Application

All the roller and cutter we use Cr12 steel with quenched treatment to make sure the the roller more stronger and not scratch the surface of produce, and the cutter more harder and long lived.



The components that each set machine includes:

COMPONENT FOR  roll forming machine
Name Quantity Units
Decoiler 1 Set
Main Machine Feeding device 1 Set
Roll forming system 1 Set
Cut Equipment 1 Set
Hydraulic system 1 Set

Electriccontrol system



1



Set
Supporter/Automatic Stacker 1 Set



2. The roll forming machine parameters

No. Item Specification
1 Can Formed Material GI,AI
2 Equipment operation Automatic
3 Voltage 380V 50Hz 3Phase or as your requirement
4 Thickness of sheet (mm) 0.5-1.0mm
5 Material width(mm) As your requirement
6 Cover Width of the sheet after formed as your drawing
7 The size of the roll forming machine 4500mmx900mmx1300mm
8 Speed 8-15m/min
9 Diameter of shaft 40mm
10 Weight of the Machine 2000-2500KGS
11 Material of rollers Cr12
12 Motor brand Siemens or Guomao
13 PLC Siemens or Delta or Mitsubushi
14 Total power (kw) 8kw
15 Power of hydraulic system 4kw
16 Power of main molding core 4kw

3. Who we are and what we do

We have high quality professional teams, skillful talents,strong technical force,strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.
We have great confidence in the quality and precision of our products. Our customers feedback said that it is a great machine, no noise, clean, very advanced technology. And it also has the features of light structure and reasonable design.



4. Features of the roll forming machine production line

a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency



5. Roll forming machine pictures:

Fully Automatic Roller Shutter Door Roll Forming Machine With Holes Punching Device 0Fully Automatic Roller Shutter Door Roll Forming Machine With Holes Punching Device 1Fully Automatic Roller Shutter Door Roll Forming Machine With Holes Punching Device 2



6. FAQ

Q1: If our country's voltage is different from yours, how to solve that?
- The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.

Q2:- What service can you provide before order?

- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.

Q3, What policy of your garentee?

- Within the One-YEARS period, we could supply you the replacement parts free of charge

for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
