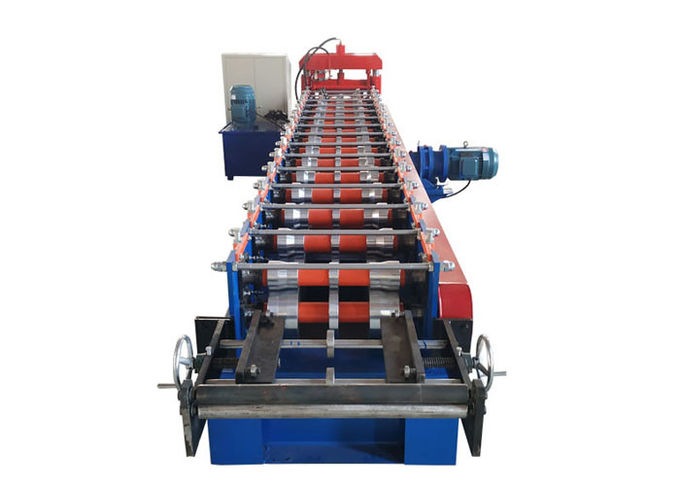

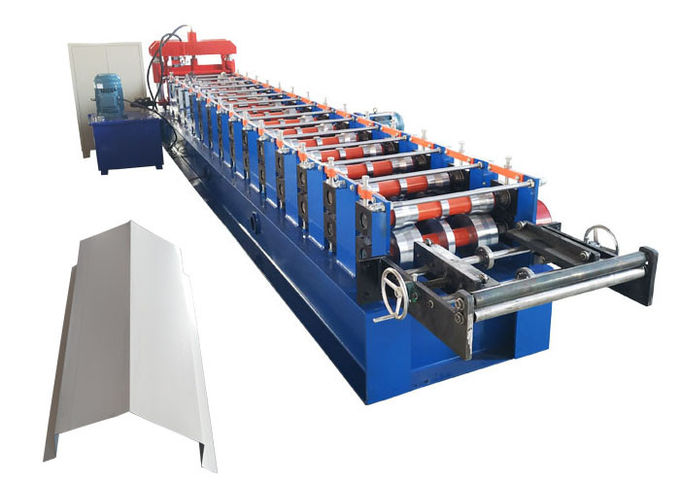

Customized Color Ridge Cap Roll Forming Machine Thickness 0.3-0.7mm Decoiler Width 500mm

China Customized Color Ridge Cap Roll Forming Machine Thickness 0.3-0.7mm Decoiler Width 500mm supplier
Customized Color Ridge Cap Roll Forming Machine Thickness 0.3-0.7mm Decoiler Width 500mm supplier Customized Color Ridge Cap Roll Forming Machine Thickness 0.3-0.7mm Decoiler Width 500mm supplier Customized Color Ridge Cap Roll Forming Machine Thickness 0.3-0.7mm Decoiler Width 500mm supplier

Large Image :  Customized Color Ridge Cap Roll Forming Machine Thickness 0.3-0.7mm Decoiler Width 500mm

Product Details:

Place of Origin: China
Brand Name: ST
Certification: ISO CE
Model Number: 420

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: contact me
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Color: Client's Request Cutting Blade Material: Cr12 With Quenched Treatment
Name: Galvanized Ridge Cap Cold Roll Forming Machine Control System: PLC System
Thickness: 0.3-0.7mm Roller Material: Carbon 45# Steel

automatic aluminum metal color steel roof Ridge Cap Roll Forming Machine

Equipment Detailed Parameters:

Raw material
material specColored Steel plate, galvanized board, Aluminum plate
thickness of coil sheet0.3-0.8 mm
Machine details
roller materialHigh grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft materialHigh grade NO. 45 carbon wrought steel
cutting bladeCr12 mould steel with quenched treatment
diameter of shaft50 mm
forming steps14 rows
productivity15-20 m/min
hydraulic station power4 KW
controlling systemDelta PLC computer control
appearance size7500mm*800mm*1300mm
hydraulic oil40# hydraulic oil
Electric tension380V 50 Hz 3 Phase or as your requirement


Production Process:

Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving

Standard Configuration:


5 tons Manual decoiler1 set
Main roll forming machine1 set
Hydraulic pump system1 set
PLC control system1 set
Receiving Table1 set
Spare parts1 set


Manual Decoiler

Capacity5T
Inner Diameter450-550mm
Width500mm


Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 40 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 40 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
Customized Color Ridge Cap Roll Forming Machine Thickness 0.3-0.7mm Decoiler Width 500mmCustomized Color Ridge Cap Roll Forming Machine Thickness 0.3-0.7mm Decoiler Width 500mm
