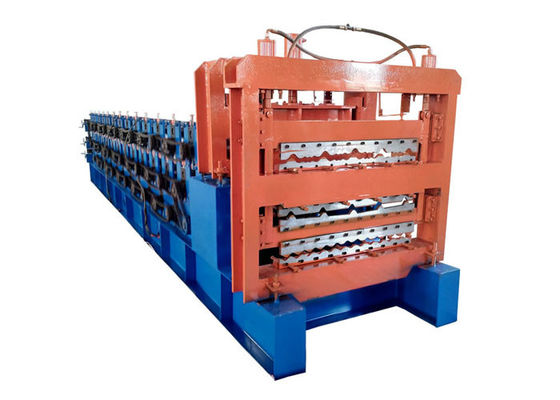

Triple Layer Roofing Sheet Roll Forming Machine Capacity 5T For Three Different Profile

Triple Layer Roofing Sheet Roll Forming Machine Capacity 5T For Three Different Profile
Triple Layer Roofing Sheet Roll Forming Machine Capacity 5T For Three Different Profile Triple Layer Roofing Sheet Roll Forming Machine Capacity 5T For Three Different Profile Triple Layer Roofing Sheet Roll Forming Machine Capacity 5T For Three Different Profile

Large Image :  Triple Layer Roofing Sheet Roll Forming Machine Capacity 5T For Three Different Profile

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: 20-200-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us get the best price
Packaging Details: Loading container
Delivery Time: 40-60 days
Payment Terms: L/C,T/T
Supply Ability: 20sets/month
Detailed Product Description
Name: Roofing Sheet Roll Forming Machine Machine Color:: Blue And Orange
Material:: Galvanized Coil Usage:: Roofing Sheet Making
Machine Power: Electric And Hydraulic Machine Speed: 8-12m/min
High Light:

roof tile roll forming machine

,

metal roof making machine

Steel roofing triple layer roofing sheet roll forming machine for there different profile


1. Steel roofing triple layer roofing sheet roll forming machine for there different profile
---- One machine can produce three different profiles for roofing sheet .
---- Roofing sheet length is controlled by hand tocuh screen.
---- The PLC program also can control the sheet quantity you want to make.
---- Well reputation from all the world.


2. Steel roofing triple layer roofing sheet roll forming machine for there different profile parameters



manual decoiler, main machine of roll forming, cutting device, output table, electric motor, hydraulic station, Delta PLC control system
processing material GI/G300-550
thickness 0.3-0.8mm
Inner diameter:450-550mm Expand by band
Outer diameter:1500mm
Max Coil width:1200mm
Capacity: 5T
Forming steps 13steps(up layer)/12steps(middle layer)/12steps(down layer)
Shaft diameter 70 mm
Thick of arch frame 18mm
Frame body 350H steel
roller material 45# steel with heat treatment
shaft material 45# steel
cutter material Cr12 mold steel with quenched treatment
Transmission By 1” chain
Work speed 8-12m/min
Automatic hydraulic cutting after forming, without wasting.

Delta PLC control

Delta touch screen

Program language: English/Chinese(or as required)

Motor power 7.5 kw
Hydraulic power 4 kw
Machine weight About 5.6 tons
Machine dimension 7.6*1.2*1.4m
Main body color Blue and orange(or as required)
Voltage 380v/50hz/3ph(or as required)





Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set



3. Shitong cold roll forming machine company profiles
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.


4. FAQ (about our roll forming machine)



1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.



2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.



3. How to visit your company?
A. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.



4. What can you do if the machine broken?
Our machine's warranty period is 24 months, if the broken parts can't repair, we can send the new parts replace the broken parts freelly, but you need pay the express cost yourself. If after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.



5. You are Trade Company or factory?
We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.



6. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.




5. Roll forming machine pictures:
Triple Layer Roofing Sheet Roll Forming Machine Capacity 5T For Three Different Profile 0Triple Layer Roofing Sheet Roll Forming Machine Capacity 5T For Three Different Profile 1Triple Layer Roofing Sheet Roll Forming Machine Capacity 5T For Three Different Profile 2
