Right Angle Steel Profile Roll Forming Machine Weight 2.1 T With Hydraulic Cutter

Right Angle Steel Profile Roll Forming Machine Weight 2.1 T With Hydraulic Cutter
Right Angle Steel Profile Roll Forming Machine Weight 2.1 T With Hydraulic Cutter Right Angle Steel Profile Roll Forming Machine Weight 2.1 T With Hydraulic Cutter Right Angle Steel Profile Roll Forming Machine Weight 2.1 T With Hydraulic Cutter

Large Image :  Right Angle Steel Profile Roll Forming Machine Weight 2.1 T With Hydraulic Cutter

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: 80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us get the best price
Packaging Details: Loading container
Delivery Time: 40-60 days
Payment Terms: L/C,T/T
Supply Ability: 20sets/month
Detailed Product Description
Machine Size:: 5.6*1.4*1.5m Thickness Of Matrial: 0.3-0.8mm
Forming Steps: 15 Steps Machine Frame: 300 H Steel
Cutting System: Hydraulic Cylinder Name: Steel Profile Roll Forming Machine
High Light:

ridge making machine

,

ridge forming machine

Right angle profile steel ridge cap roll forming machine with hydraulic cutter



1. Right angle profile steel ridge cap roll forming machine with hydraulic cutter

The ridge cap roll forming machine consists of decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system, control system. The ridge cap which made by this machine have neat external appearance, even ripples, high utilization and strong strength.

Now our ridge cap roll forming machine have been exported to many countries, the most important is that all you need can be customized.

We are not only machine provider, we also provide a whole set of cold bending forming solution for customer.



2. Right angle profile steel ridge cap roll forming machine with hydraulic cutter parameters

parameters
Production Capacity 10-15 m /min
Power(W) 4+4KW
Voltage 380V 50Hz 3phases
Dimension(L*W*H) 4500*800*1500mm
Weight 2.1T
Suitable material Colored Steel plate, galvanized board, Aluminum plate
Width of the raw material 333 mm
Rows of rollers 12 rows
Material of roller High grade 45# steel(plated chrome on surface)
Thickness of raw material 0.2-0.8mm
Certification ISO
Tile Type Tile Cutting Machine



Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set



3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

4. Comapny advantage:

In Botou, we start the pressure roll forming machine export business from 2008.

As a manufacturer we are specialized in all kinds of roll forming machine, we are not machine supplier, we are a roll forming solution provider.

Provide best price,good quality and fast delivery.


5. FAQ

1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2:How to visit our company:

Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.

3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.

4:If you want to get more pictures or videos of the machines,I can send them to you by Email or SKype.


6. Roll forming machine pictures:

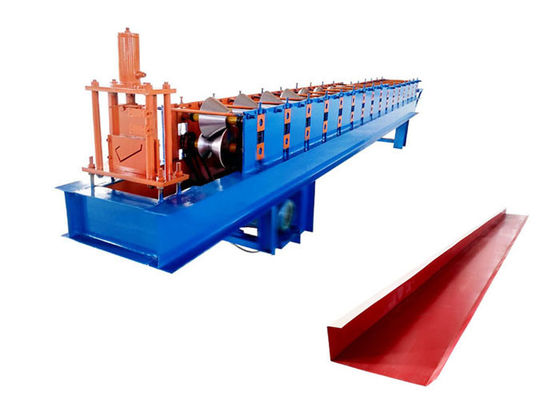

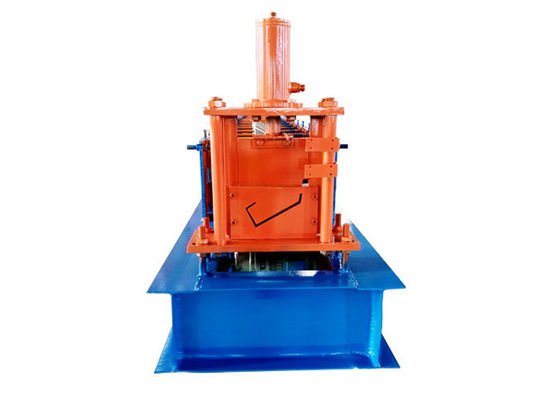

Right Angle Steel Profile Roll Forming Machine Weight 2.1 T With Hydraulic Cutter 0Right Angle Steel Profile Roll Forming Machine Weight 2.1 T With Hydraulic Cutter 1
