High Efficiency Corrugated Sheet Roll Forming Machine Size 5800*1300*1500mm

China High Efficiency Corrugated Sheet Roll Forming Machine Size 5800*1300*1500mm supplier
High Efficiency Corrugated Sheet Roll Forming Machine Size 5800*1300*1500mm supplier High Efficiency Corrugated Sheet Roll Forming Machine Size 5800*1300*1500mm supplier High Efficiency Corrugated Sheet Roll Forming Machine Size 5800*1300*1500mm supplier High Efficiency Corrugated Sheet Roll Forming Machine Size 5800*1300*1500mm supplier

Large Image :  High Efficiency Corrugated Sheet Roll Forming Machine Size 5800*1300*1500mm

Product Details:

Place of Origin: China
Brand Name: ST
Certification: ISO CE
Model Number: 836

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: contact me
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Material: GI, PPGI, PPGL Width: 1000 Mm
Rows Of Rollers: 11 Stations Power: 4 Kw
Material Of Rollers: High Grade 45# Forged Steel, Surface Hard Chromium Plating Material Of Shafts: High Grade 45# Forged Steel

quality assured high efficiency fast speed Corrugated Sheet Roll Forming Machine



H steel 300 mm
Chain size 1 inch
Total power 4 kw
Voltage 380V 50HZ 3Phase
Appearance size (About) 5800mm*1300mm*1500mm
Weight(About) 3 tons



 Main machine system

①Roll forming system



  • Roll forming system consists of machine frame, drive disk assembly and cold bending rollers, ect.
  • The machine Section production and then splicing it
  • Cr12 Heat Treatment,roller surfaces polishing, hard plating .
  • Support structure in the form of roller shaft.
  • All motors use dedicated motor, has excellent mechanical properties.
  • Powered by a hydraulic motor system, it has small machine noise, and stable speed rapid prototyping.


②System for forming after cutting off



  • Adopting rolling forming then cut the sheet. No waste here, Cutting knife is made of the Cr12 after quenching.
  • Using combined frame type to cut the machine frame. The characteristics is good maintainability and easy to adjust.
  • Hydraulic stations offer the cutting power.


③Structural features



  • Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
  • Cut-off tool: Use of high strength wear thicker type mold, it is advantageous to avoid cutting off at deformation.

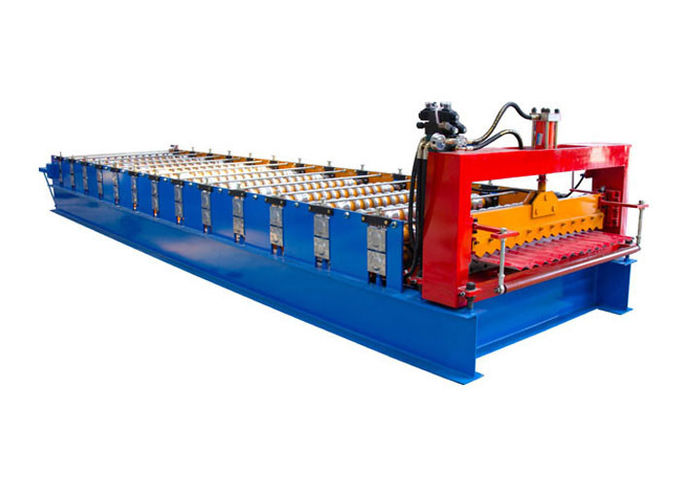

High Efficiency Corrugated Sheet Roll Forming Machine Size 5800*1300*1500mm

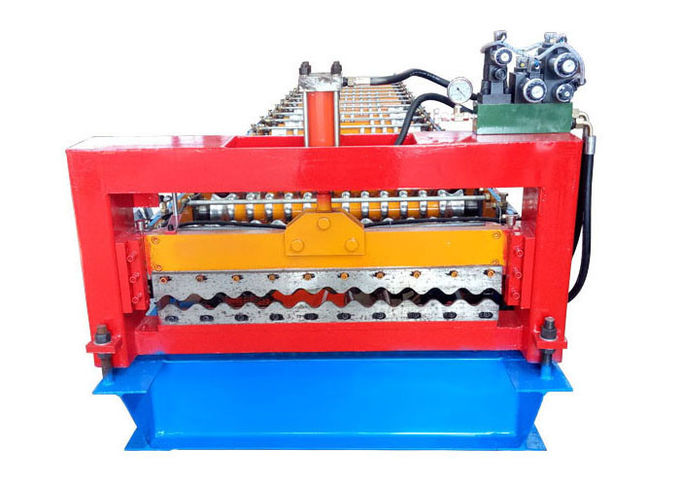

High Efficiency Corrugated Sheet Roll Forming Machine Size 5800*1300*1500mm

All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming
It is very easy to install the equipment and suitable for producing in the factory.
