Automatic high quality used color steel sheet metal roll forming machine

Automatic high quality used color steel sheet metal roll forming machine
Automatic high quality used color steel sheet metal roll forming machine Automatic high quality used color steel sheet metal roll forming machine Automatic high quality used color steel sheet metal roll forming machine

Large Image :  Automatic high quality used color steel sheet metal roll forming machine

Product Details:
Place of Origin: HEBEI
Brand Name: ST
Certification: CE, ISO
Model Number: 1060
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: contact the sales,she will give you the best offer
Packaging Details: the machine is nude
Delivery Time: 30-40 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set per month
Detailed Product Description
Voltage: 380V 50HZ 3phase Speed: 20-25m/min
Forming Steps: 13 Stations Main Frame: 300 H Steel
Chain Size: 1 Inch Hydraulic Pressure: 10-12MPa
High Light:

roof tile roll forming machine

,

metal roof making machine

Automatic high quality used color steel sheet metal roll forming machine

1. Company information

BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated nterprises, concerning with the design, development and production of cold roll forming machines,material of building.

It is located in northwest of CangZhou, as a long history of cold roll forming machine production

base. All products comply with international quality standards

and are greatly appreciated in variety of different markets throughout the world, such

as Asia, Africa, Europe,South America, and Australia and so on.

sturcture and reasonable design.

2. Technical parameters:

configurations manual decoiler, main machine of roll forming, cutting device, output table, electric motor, PLC control system
Material processing material Colored Steel plate, Galvanized Board, Aluminum Plate
  thickness 0.3mm-0.8mm
  Efficienty width 750mm
  Coil width 1000mm
Manual decoiler The maximum load capacity:5 ton Expand by band
  The coil inside diameter:450-550mm
  Suitable Coil width:1250mm
Main Forming machine Forming steps 13steps
  Shaft diameter 70 mm
  Thick of arch frame 16mm
  Frame body High strength steel pipe weld with color steel sheet cover
  roller material 45# steel
  shaft material 45# steel
  cutter material Cr12 mold steel with quenched treatment
  Transmission By 1” chain
  Work speed 20-25m/min
Hydraulic system Automatic hydraulic cutting after forming, without wasting.
Control Device

PLC control

touch screen

Program language: English/Chinese(or as required)

Operating mode Button+touch screen
  Total power 4 kw
  Main body color Blue and orange(or as required)
  Voltage 380v/50hz/3ph(or as required)

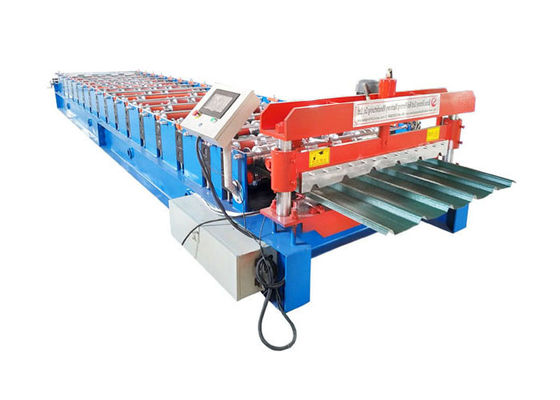

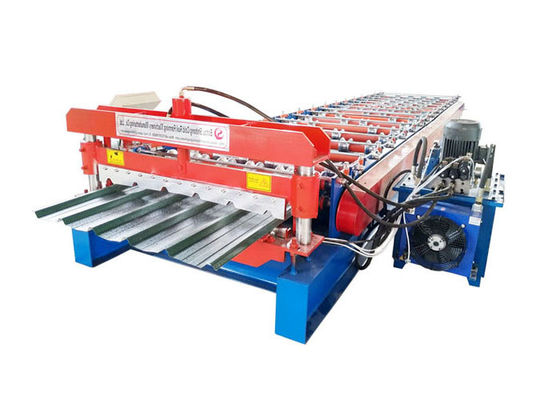

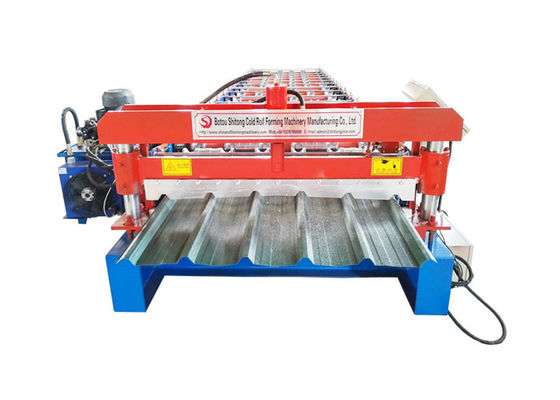

3. Machine picture
Automatic high quality used color steel sheet metal roll forming machine 0Automatic high quality used color steel sheet metal roll forming machine 1Automatic high quality used color steel sheet metal roll forming machine 2

Before ordering:

We can help to analyze the roof tile in your market. Which one is popular and which one will be popular.

Then your product is hot sale roof tile .



We can confirm all details of the roof tile roll forming machine together, including the drawing, thickness of

material, hardness of the steel coil, the input width of the steel coil, capacity of the roll forming machine.



We can help you to find the real manufacturer of steel coil manufacturer. Say bye to Trade company. So you can

order the material coil with lowest price.



During production:

We can send the pictures to show you the schedule of your roll forming machines.

We will show you my blogger account for you to learn knowledge of roll forming machine if you would like

We will ask you what color of the roll forming machine body. Produce the machine under your suggestion



After-sale service:

We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and

you will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine



We supply all life tech support of our roll forming machines, Any questions, you can contact me by whatsapp.

( I suggest that whatsapp or wechat is good. Because i can get your words timely) Important thing, you can write mail to me.
