| Machine Size:: | 9.6*1.2*1.5m | Name: | Double Layer Roll Forming Machine |
|---|---|---|---|
| Suitable Thickness: | 0.3-0.8mm | Working Speed: | 20-25m/min |
| Maching Weight: | 3500kg | Machine Drive: | High Quality Electric Motor |
| High Light: | cold roll forming machine,double deck roll forming machine |
||
Rib roof and roof tile double layer roll forming machine have hydrualic driving system
1. Rib roof and roof tile double layer roll forming machine have hydrualic driving system
---- Machine package by plastic film, laoding in container, gennerally we delivery machine by sea.
---- In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating..
---- Hydraulic Station is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function..
---- Shearing Mechanism adopts the hydraulic drive and automatic location to decide the dimension and cut the target products
2. Rib roof and roof tile double layer roll forming machine have hydrualic driving system parameters
| Raw material | |
| Material | Colored steel sheet, galvanized steel sheet, aluminum sheet |
| Thickness of coil sheet | 0.3-0.8 mm |
| Material expand width | 940 mm/1000mm/1200mm |
| Efficiency width | 762-760 mm/840-910mm/1000-1050mm |
| Machine details | |
| Roller material | High grade no. 45 forged steel with 0.05mm hard chrome plating |
| Shaft material | High grade no. 45 carbon wrought steel |
| Cutting blade | Cr12 mould steel with quenched treatment |
| Diameter of shaft | 70mm |
| Main frame | 300 H steel |
| Forming steps |
Up layer:11 stations Down layer:13 stations |
| Productivity | 20-25m/min |
| Hydraulic station power | 5.5kw |
| Hydraulic pressure | 10-12mpa |
| Appearance size | 6500mm*1500mm*1500mm |
| Weight | 4.5 tons |
| Hydraulic oil | 40# hydraulic oil |
| Electric tension | 380v 50 hz 3 phase or as your requirement |
| Cut mode | Hydraulic forming after cutting off |
| Cutter materia | Cr12 heat treatment |
| Electronic control system | Plc, touch screen, encoding counter |
| Color | Blue, green or yellow or as your requirement |
| Rolling material | 45# steel,roller surfaces polishing, hard plating |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. Business terms:
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 40 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 35 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
5. FAQ(about our roll forming machine)
1. Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
2. Q: What size decoiler can you supply us with?
A: From 5-ton decoiler to a 25-ton motorized hydraulic decoiler
3. Q: How to visit your company?
A: a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4.Q: What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

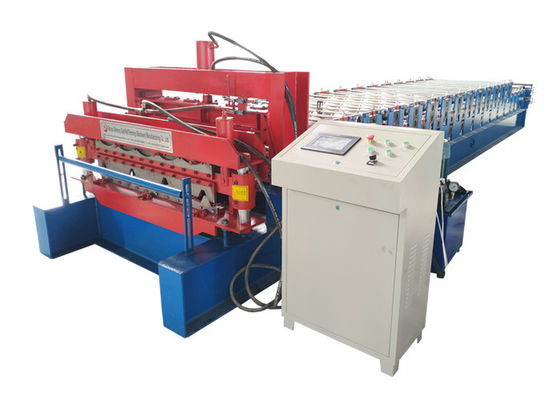

6. Roll forming machine pictures:
