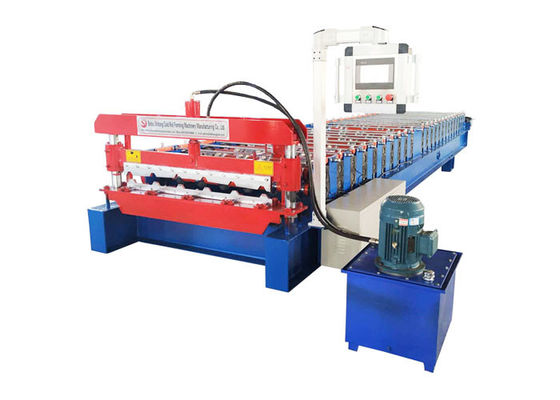

PLC Control Roofing Sheet Roll Forming Machine Raw Material PPGI / PPGL / Aluminium

(1)Tension type decoiler

The maximum load capacity 5 Ton

The coil inside diameter φ508mm

Suitable coil width 1200mm

①Roll forming system

• Roll forming system consists of machine frame, drive disk assembly and cold bending rollers, ect.
• The machine Section production and then splicing it
• Cr12 Heat Treatment,roller surfaces polishing, hard plating .
• Support structure in the form of roller shaft.
• All motors use dedicated motor, has excellent mechanical properties.
• Powered by a hydraulic motor system, it has small machine noise, and stable speed rapid prototyping.

• Adopting rolling forming then cut the sheet. No waste here, Cutting knife is made of the Cr12 after quenching.
• Using combined frame type to cut the machine frame. The characteristics is good maintainability and easy to adjust.
• Hydraulic stations offer the cutting power.

③Structural features

• Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
• Cut-off tool: Use of high strength wear thicker type mold, it is advantageous to avoid cutting off at deformation.

• Hydraulic system

• Description

• The main valve parts adopt domestic high-quality brand.
• Oil cylinder and oil pump adopt national standard rod oil cylinder, easy to purchase all over the world.
• The motor is national standard copper core, universal around the world.

• Characteristic

• The hydraulic system after optimization design, compact structure, with beautiful appearance
• Stable performance and good durability.

• Electronic control system

• Description

• The machine used well-known brand of Delta PLC control technology. To realize the automatic machine
• The system to provide friendly man-machine interface, It can be set batch, workpiece length and number, etc.
• Encoder count, count and length with function.
• PLC touch screen adopt domestic famous brands.

• Characteristic

• Adopt touch screen control box through the man-machine interface, convenient operation, good appearance, consistent with the whole equipment.
• The main components adopt France Schneider, It will stable performance, good reputation, global procurement.
• Using a number of control technology, automation degree is high.
• Encoder count, length accurately.
