Long Curving Roof Trapezoidal Sheet Roll Forming Machine Effective Width 835 / 828 / 840mm

Long Curving Roof Trapezoidal Sheet Roll Forming Machine Effective Width 835 / 828 / 840mm
Long Curving Roof Trapezoidal Sheet Roll Forming Machine Effective Width 835 / 828 / 840mm Long Curving Roof Trapezoidal Sheet Roll Forming Machine Effective Width 835 / 828 / 840mm Long Curving Roof Trapezoidal Sheet Roll Forming Machine Effective Width 835 / 828 / 840mm

Large Image :  Long Curving Roof Trapezoidal Sheet Roll Forming Machine Effective Width 835 / 828 / 840mm

Product Details:
Place of Origin: HEBEI
Brand Name: ST
Certification: CE, ISO
Model Number: 1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: contact the sales,she will give you the best offer
Packaging Details: the machine is nude
Delivery Time: 30-40 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set per month
Detailed Product Description
Name: Trapezoidal Sheet Roll Forming Machine Shaft Diameter: 70 Mm
Roller Material: High Grade NO. 45 Forged Steel With 0.05mm Hard Chrome Plating Shaft Material: High Grade NO. 45 Carbon Wrought Steel
Main Frame: 300 H Steel Hydraulic Station Power: 4 KW
High Light:

metal roof roll forming machine

,

metal roofing sheet making machine

long curving roof sheet arched trapezoidal making sheet metal roll forming machine



1. Company information

At Shitong, sheet metal coil processing systems are worked to the highest industrial standards to ensure operating efficiency and long-lasting durability. Based on our complete design capability, our experienced technical team can match our technology with your production needs to achieve a most efficient and profitable operation.

And our complete production line of feeders, straighteners, uncoilers and other ancillary press equipments that can be supplied as an integrated coil system or as stand-alone systems can fully meet your coil processing needs in you press rooms and factories



2. Technical parameters:

configurations manual decoiler, main machine of roll forming, cutting device, output table, electric motor, PLC control system
Material processing material Colored Steel plate, Galvanized Board, Aluminum Plate
  thickness 0.3mm-0.8mm
  Efficienty width 835/828/840mm
  Coil width 1000mm
Manual decoiler The maximum load capacity:5 ton Expand by band
  The coil inside diameter:450-550mm
  Suitable Coil width:1250mm
Main Forming machine Forming steps 13steps
  Shaft diameter 70 mm
  Thick of arch frame 16mm
  Frame body High strength steel pipe weld with color steel sheet cover
  roller material 45# steel
  shaft material 45# steel
  cutter material Cr12 mold steel with quenched treatment
  Transmission By 1” chain
  Work speed 20-25m/min
Hydraulic system Automatic hydraulic cutting after forming, without wasting.
Control Device

PLC control

touch screen

Program language: English/Chinese(or as required)

Operating mode Button+touch screen
  Total power 4 kw
  Main body color Blue and orange(or as required)
  Voltage 380v/50hz/3ph(or as required)

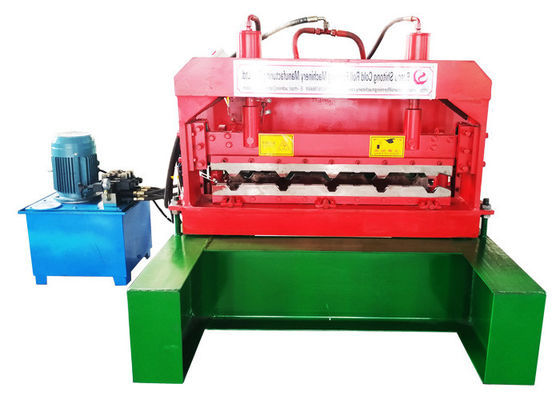

3. Machine picture
Long Curving Roof Trapezoidal Sheet Roll Forming Machine Effective Width 835 / 828 / 840mm 0Long Curving Roof Trapezoidal Sheet Roll Forming Machine Effective Width 835 / 828 / 840mm 1Long Curving Roof Trapezoidal Sheet Roll Forming Machine Effective Width 835 / 828 / 840mm 2

4. Installation and training:

A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine,

and also trainyour workers/technician face to face.

B. Without visiting, we will send you user manual and video to teach you to install and operate.

C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.



5. After service

A. One year guarantee for whole machine.

B. 24 hours technical support by email or phone call.

C. If there is any problem found of the machine, we will repair it for free in one year.



6. FAQ

1. You are the manuafacturer or trading company ?

A: We are the professional manufacturer , and we have more than 20 years professional experiece in the field of roll forming machine.



2. Can you make the machine according to my design or photo type?

A: Yes. We have an experienced team to work out the most suitable design and production plan

for the machine.


3. How can we be assured that you will deliver us quality machine with spare parts?

A:1. Customers to send the technical people to our factory for checking the quality.

2. We can send the technicians to the buyer`s factory for the installation of the machine.


4.What policy of your garentee?

A: Within the One-YEARS period, we could supply you the replacement parts free of charge

for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
