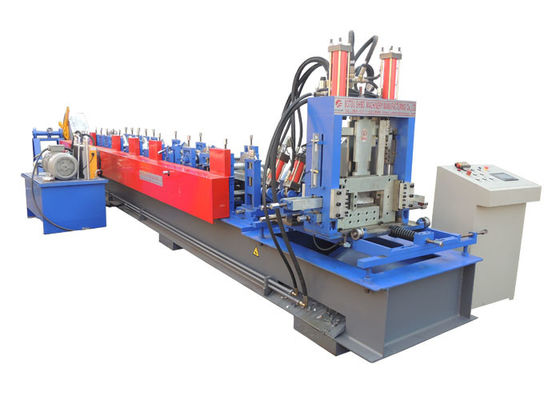

Interchangeable CZ Purlin Roll Forming Machine Working Speed 20-25 M/Min

Interchangeable CZ Purlin Roll Forming Machine Working Speed 20-25 M/Min

China Interchangeable CZ Purlin Roll Forming Machine Working Speed 20-25 M/Min supplier
Interchangeable CZ Purlin Roll Forming Machine Working Speed 20-25 M/Min supplier Interchangeable CZ Purlin Roll Forming Machine Working Speed 20-25 M/Min supplier Interchangeable CZ Purlin Roll Forming Machine Working Speed 20-25 M/Min supplier

Large Image :  Interchangeable CZ Purlin Roll Forming Machine Working Speed 20-25 M/Min

Product Details:

Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: 80/300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact us get the best price
Packaging Details: Loading container
Delivery Time: 40-60 days
Payment Terms: L/C,T/T
Supply Ability: 20sets/month
Contact Now
Detailed Product Description
Name: CZ Purlin Roll Forming Machine Raw Material: Cold Or Hot Coil
Drive Method: 2" Chain Working Speed: 20-25m/min
Maching Weight: 9600kg Control System: PLC Control System

Interchangeable C and Z shape purlin roll forming machine for construction material making


1. Interchangeable C and Z shape purlin roll forming machine for construction material making



---- Produce different purlin size without changing rollers or spacers.

---- No need changing cutter for different size.

---- Easy operation, low maintenance cost

---- Infinite sizing(any size within machine range),help to save material

---- Optional Punch hole at any position of purlin web side and flange side



2. Interchangeable C and Z shape purlin roll forming machine for construction material making parameters



Configurations Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control System PLC Inverter Encoder Touch Screen
Main Frame 400mm H-Beam
Total Power 22 kw
Power Supply 380V, 3-Phase,50Hz
Forming Speed 12-24m/min
Roll Station 18 stands
Roller Diameter 80mm
Effective Width 80-300mm
Feeding Thickness 1.5-3.0mm
Backboard Thickness 20mm
Cutter Standard GCr12
Roller Standard Gcr15#
Overall Size About 8500×1000×1400mm
Total Weight About 10T
Custom According to customer's requirements





Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set



3. roll forming machine company profiles


Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.


4. FAQ(about our roll forming machine)


1) Q: Are you manufacturer or trading company?

A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?

A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?

A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).

We join Alibaba Trade Assurance.

5) What should I provide if I`d love to customized my machine?

A: To customize machine, we`d love to know:


5. Roll forming machine pictures:

Interchangeable CZ Purlin Roll Forming Machine Working Speed 20-25 M/MinInterchangeable CZ Purlin Roll Forming Machine Working Speed 20-25 M/Min
