BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD
Home ProductsRoller Shutter Door Roll Forming Machine

Construction Materials Cold Roll Forming Machine , Door Frame Roll Forming Machine

Construction Materials Cold Roll Forming Machine , Door Frame Roll Forming Machine

Construction Materials Cold Roll Forming Machine , Door Frame Roll Forming Machine
Construction Materials Cold Roll Forming Machine , Door Frame Roll Forming Machine Construction Materials Cold Roll Forming Machine , Door Frame Roll Forming Machine Construction Materials Cold Roll Forming Machine , Door Frame Roll Forming Machine

Large Image :  Construction Materials Cold Roll Forming Machine , Door Frame Roll Forming Machine

Product Details:
Place of Origin: HEBEI
Brand Name: ST
Certification: CE, ISO
Model Number: 1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: contact the sales,she will give you the best offer
Packaging Details: the machine is nude
Delivery Time: 30-40 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set per month
Detailed Product Description
Processing Material: Colored Steel Plate, Galvanized Board, Aluminum Plate Thickness: 0.3mm-0.8mm
Efficienty Width: 1000mm Coil Width: 1200mm
Production Capacity: 14m/min Name: Door Frame Roll Forming Machine
High Light:

garage door roll forming machine

,

automatic rolling shutter machine

door frame construction materials cold sheet metal roll forming machine



1. Company information



BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.

We have high quality professional teams,skillful talents,strong technical force,strong and indenpendent reaserch and development capabilities,advanced production equipment and a perfect after-sales service system.We have great confidence in the quality and precision of our product.Our customers feedback said that it is a great machine,no noise,clean,very advanced technology ,and it also has the features of light sturcture and reasonable design.



2. Technical parameters:



configurations manual decoiler, main machine of roll forming, cutting device, output table, electric motor, PLC control system
Material processing material Colored Steel plate, Galvanized Board, Aluminum Plate
  thickness 0.3mm-0.8mm
  Efficienty width 1000mm
  Coil width 1200mm
Manual decoiler The maximum load capacity:5 ton Expand by band
  The coil inside diameter:450-550mm
  Suitable Coil width:1250mm
Main Forming machine Forming steps 13steps
  Shaft diameter 70 mm
  Thick of arch frame 16mm
  Frame body High strength steel pipe weld with color steel sheet cover
  roller material 45# steel
  shaft material 45# steel
  cutter material Cr12 mold steel with quenched treatment
  Transmission By 1” chain
  Work speed 20-25m/min
Hydraulic system Automatic hydraulic cutting after forming, without wasting.
Control Device

PLC control

touch screen

Program language: English/Chinese(or as required)

Operating mode Button+touch screen
  Total power 4 kw
  Main body color Blue and orange(or as required)
  Voltage 380v/50hz/3ph(or as required)

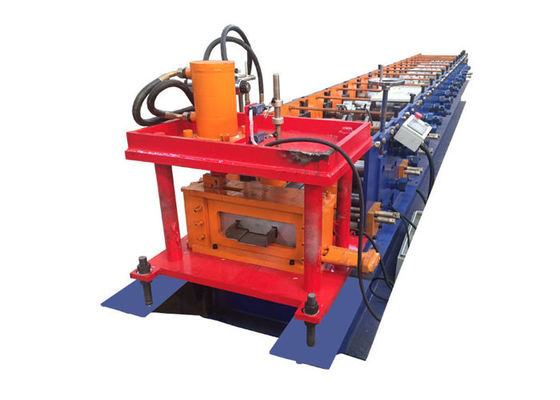

3. Machine picture

Construction Materials Cold Roll Forming Machine , Door Frame Roll Forming Machine 0
4. Installation and training:

A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.

B. Without visiting, we will send you user manual and video to teach you to install and operate.

C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.



5. After service

A. One year guarantee for whole machine.

B. 24 hours technical support by email or phone call.

C. If there is any problem found of the machine, we will repair it for free in one year.



6. FAQ

1. How to choose the machine,any information i need to offer?

You need to provide the product drawings.



2. How about your machine quality?

Durmapress is a mature Brand in China,through our many years research in technology,our design including structure and detailed sercurity and precision has enhanced grearly and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry,there are Durmapress machines.And where there are our machines,there are good reputation and terminal user satisfaction.



3. Where is your factory?

Durmapress located in Bowang district high and new technology industrial park,maanshan city Anhui province which is the leading area in China and also in the worldwide as the center of the metal place solution machines.



4. Do you accpect L/C payment terms?

Yes,we accpect 100% L/C at sight from almost all countries.
